Product specifications:

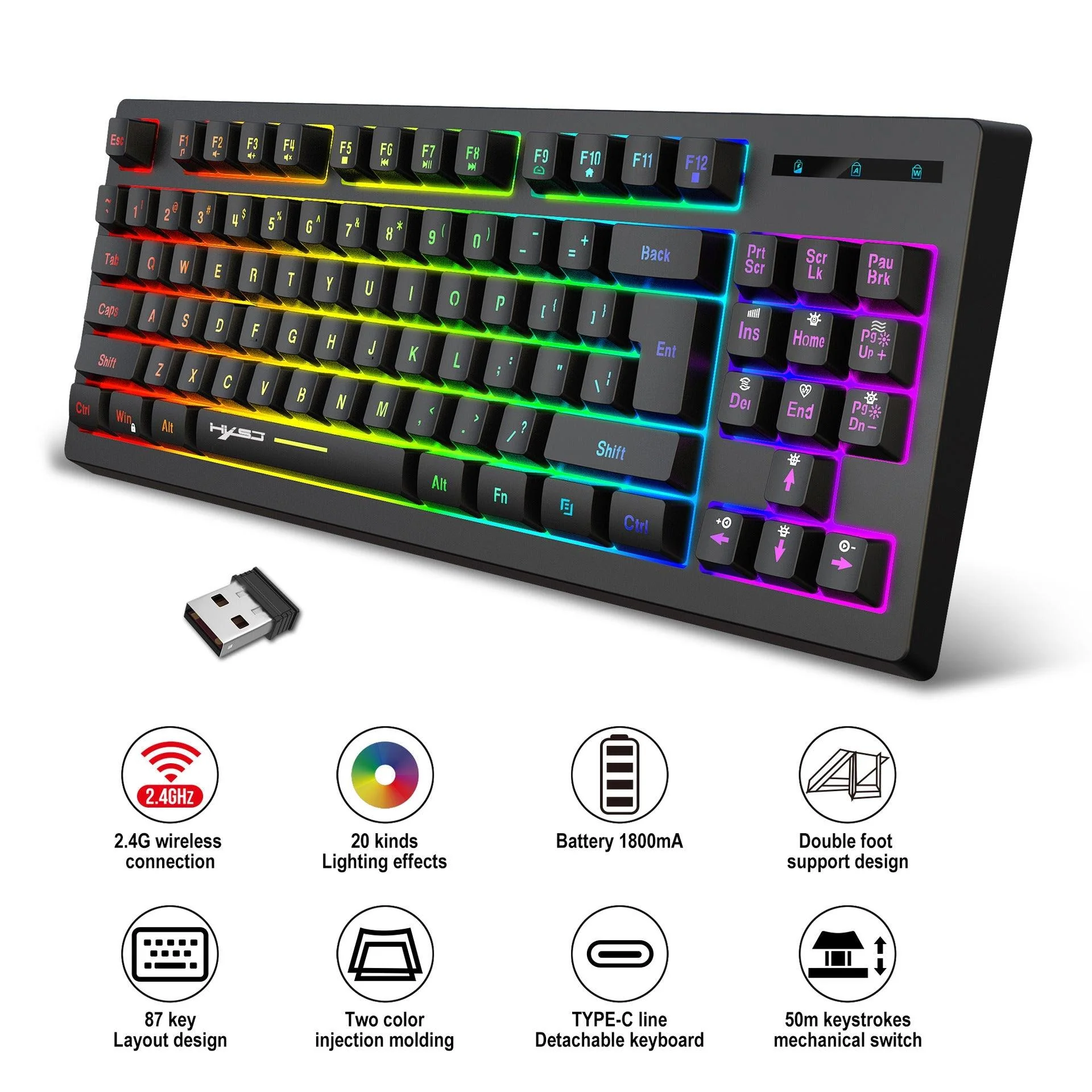

Specification item：87-KEY RGB LIGHTING 2.4G WIRELESS KEYBOARD
Product number:L100

Interface Type:USB
Connection method:2.4G wireless transmission
Luminous Type:RGB glow
product type:Membrane keyboard
Number of keys:87 KEY
Button life:50 million times or more
Charging cable length: 155cm
battery capacity:1800 mAh
Sustainable work:36h
Operating Voltage:3.0V
Working current:50mA (MAX)
Key cap material:ABS two-color injection
Multimedia:Support FN+12 key combinations
Product Size:37.2 * 15.1* 3.7CM

Product function introduction:
1. Adopt 2.4G wireless transmission technology
2. 87-key design, stylish office game.
3. Membrane keyboard design, light touch feeling.
4. Full-speed interface USB2.0, support 1000 report rate.
5. Support 6-key conflict-free input.
6. Support 6 kinds of stunning backlight effects.
7. Support lock WIN function .
8. The service life of the switch is more than 50 million times.
9. The total stroke of the button is 3.6MM, and the maximum bounce time is 5ms.
10. Supported operating systems:
Win XP/Win7/Win8/Win10/Android/Mac OS, etc.
11. Code pairing compound key: Press the "~" key + "K" key, the low voltage indicator flashes,
enter the code pairing mode, plug the receiver into the host's US port, the LED stops flashing,
and the code pairing is successful!
12. Automatic sleep power saving mode: support 6~8 minutes without operating the keyboard,
the backlight will automatically turn off, the keyboard will enter the sleep state, press any key to wake up;
13. The charging indicator light is located on the side of the charging interface, it is red when
charging, and the light is off when fully charged; when the indicator light is flashing, it indicates
that the battery is low, please charge it in time;
14. Built-in 1800mA battery, which can be fully charged in about 2 hours with 5V/1A charging device; 36 hours of super long time without hibernation, with hibernation function, and 10 to 15 days under normal office use standby time.

Multimedia key function:
FN+F1= Media Sel
FN+F2= Volume-
FN+F3= Volume+
FN+F4= Mute
FN+F5= CD Stop
FN+F6= Prev Track
FN+F7= Play/Pause
FN+F8= Next Track
FN+F9= Email
FN+F10= Web/Home
FN+F11= Full screen mode
FN+F12=Calculator

Backlight Adjustment Instructions:
Light-emitting characteristics: LED light bar is used to realize the keyboard light-emitting through
the light-emitting board; it supports 6 kinds of stunning backlight effects.
1. FN + DEL colorful horse race: RGB flowing water backlight power-on default.
2. FN + Insert Spectrum: Spectral colors cycle automatically.
3. FN + Home Monochrome: Seven-color monochrome cycle switching. Press once to switch a color;
4. FN + Page Up: Light wave mode;
5. FN + End breathing mode: colorful color cycle breathing.
6. FN+Page Down: Backlight off/on.
7. Support FN + ↑ or FN + ↓ to adjust the backlight brightness.
8. Support FN + ← or FN + → to adjust the backlight playback speed, support spectrum/wave/horse race/breathing.
9. FN + WIN-L locks the WIN&APP function. Press FN + WIN-L to lock the WIN and APP keys at the same time, and press again to unlock.
